Mega 150 Watt RV Solar Panel (Rich Solar)

Features

5 buss bar solar cell configuration
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug and play junction box
Industry standard quick connect cables work in series or in parallel
Certified to withstand challenging environmental conditions
Excellent low light performance on cloudy days, mornings and evenings

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
Compatible with on-grid and off-grid inverters

Warranty

25 year limited power output

Built-in Components

RICH SOLAR 150 watt monocrystalline solar panel
Panel leads (pair): 3 feet each
IP65 rated waterproof junction box
IP67 rated waterproof solar connectors
Bypass diodes built-in the junction box

Specifications

• Maximum Power (Pmax)
  150 W
• Maximum Power Voltage (Vmp)
  17.5V
• Maximum Power Current (Imp)
  8.57A
• Open Circuit Voltage (Voc)
  21.8V
• Short Circuit Current (Isc)
  8.94A
• Maximum System Voltage (Vmax)
  1000VDC
• Maximum Series Fuse Rating
  10A
• Temperature Range
  -40 ~ +185°F
• Weight
  16.5 lb

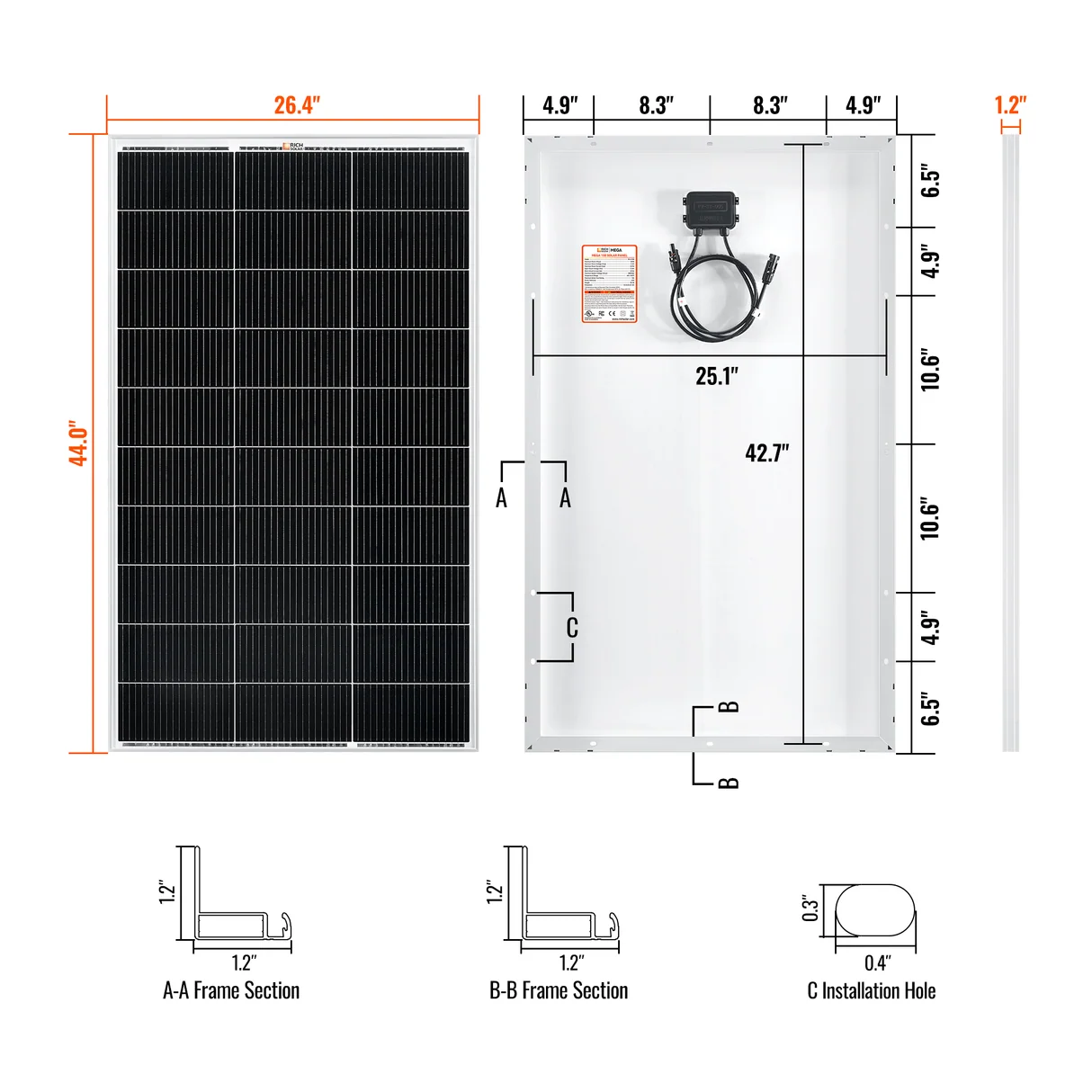

• Dimensions
  44.0 x 26.4 x 1.2 in
